Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel

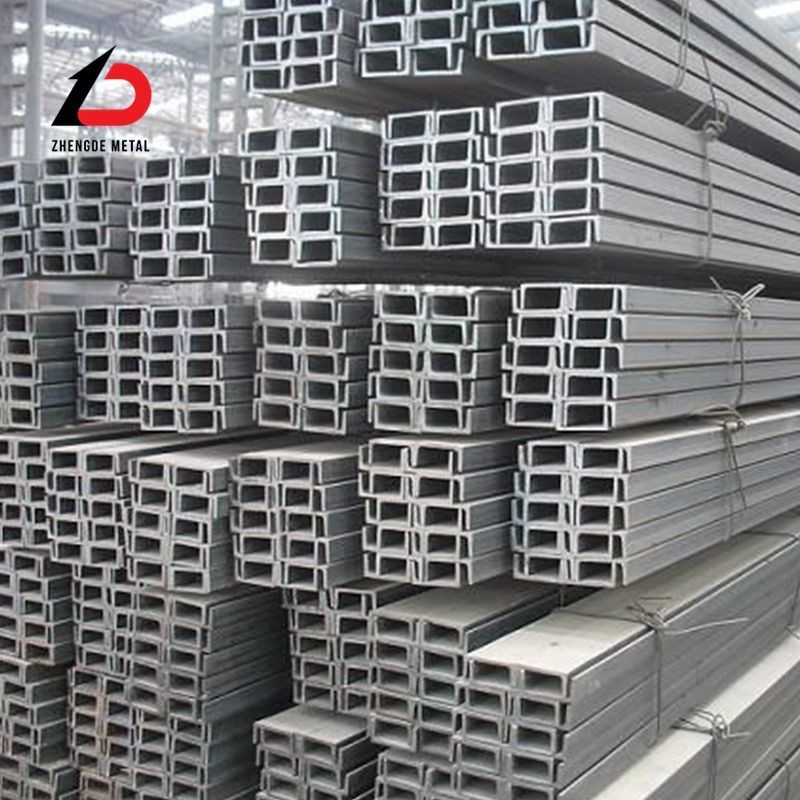

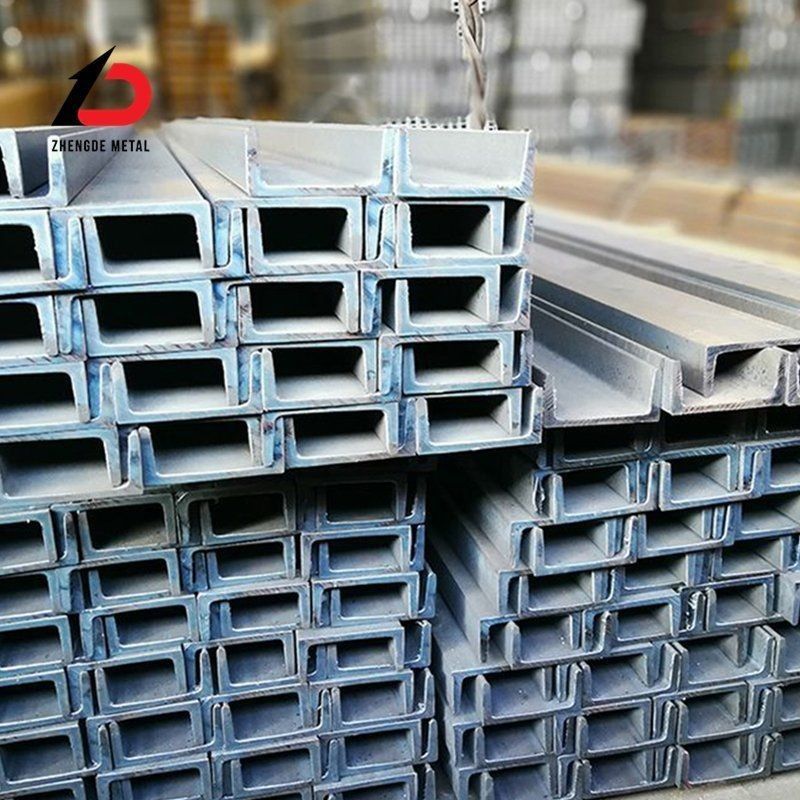

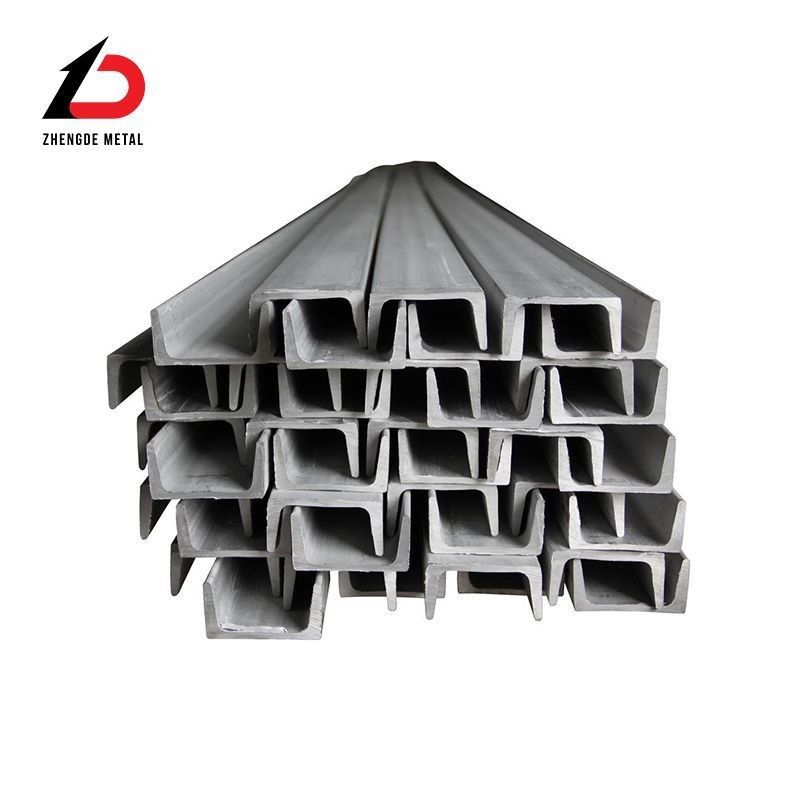

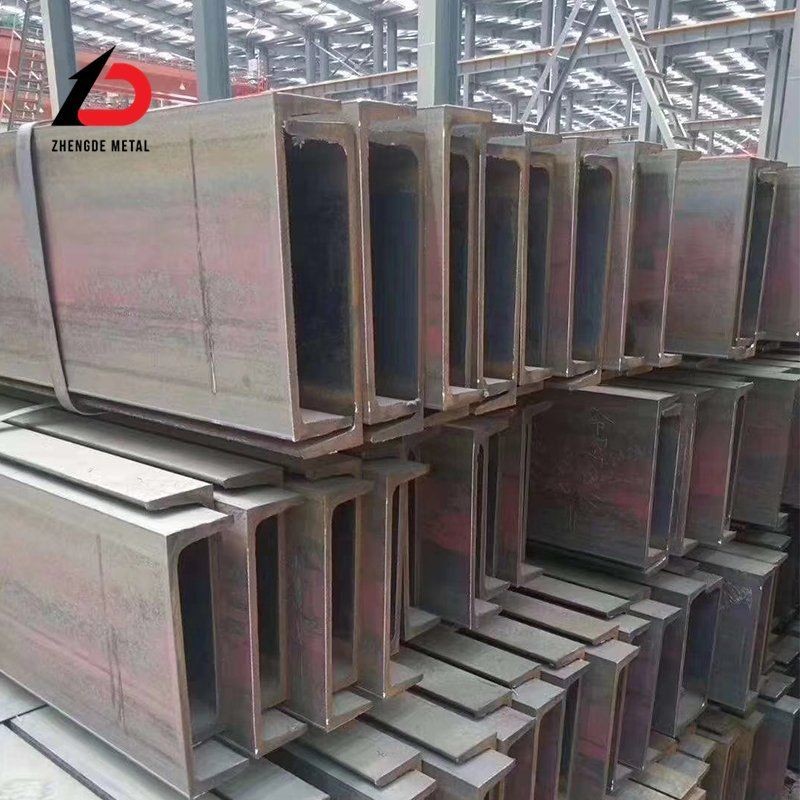

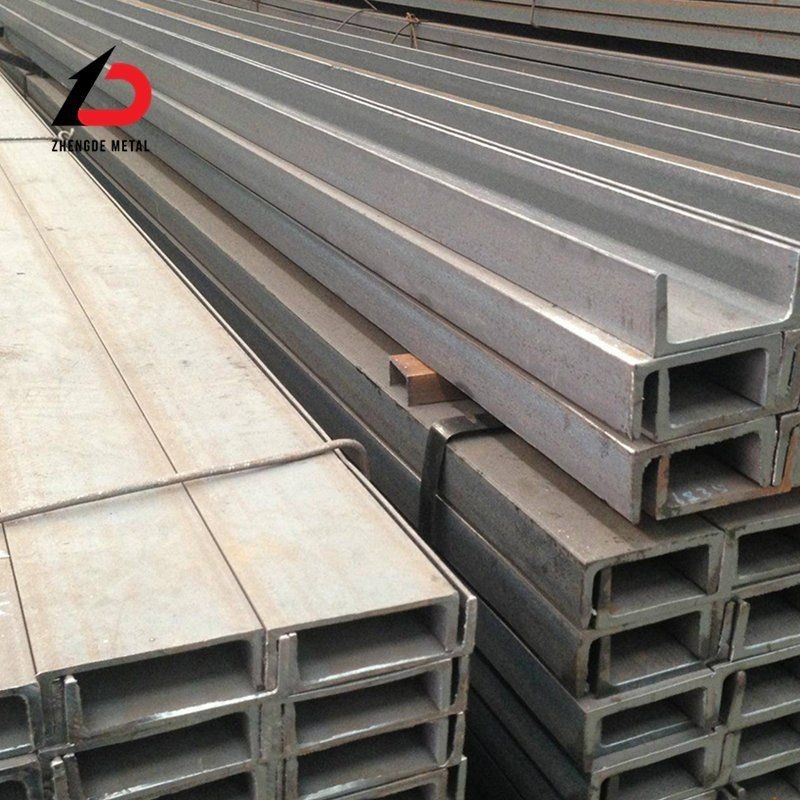

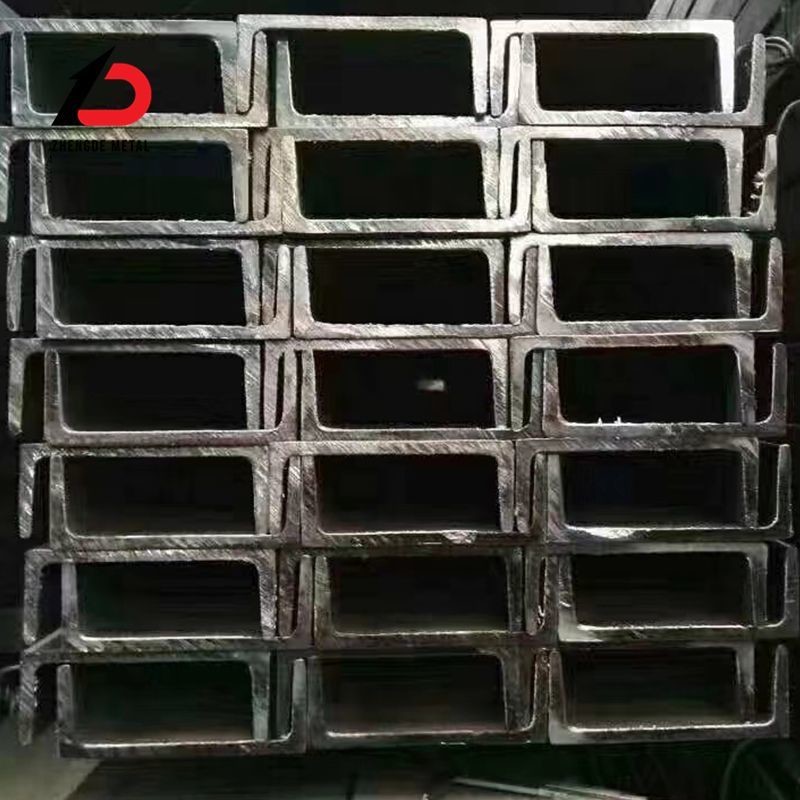

Zhengde U&C Channel steel is U-shaped steel is a steel with a cross-section like the English letter "U", and sometimes the cross-section is in the shape of the Japanese letter "".
Main features: high pressure, long support time, easy installation and not easy to deform.
Main application: It is mainly used for mine roadway, secondary support of mine roadway, and support of mountain tunnel.
As the main section steel for manufacturing roadway shrinkable metal brackets, U-section steel is widely used at home and abroad...

Excellent characteristics
The material of the U&C channel steel is generally carbon structural steel such as 1020/C20E4/1045/E355DD, and some channel steels with special requirements are made of alloy steel. The second is the surface treatment of the channel steel. The surface treatment of channel steel generally includes painting, galvanizing, and plastic spraying to improve the corrosion resistance and aesthetics of channel steel. The last is the processing method of channel steel. Channel steel can be processed by cutting, drilling, welding, etc. to meet different usage needs.

Major application
U&C channel steel has a wide range of uses and can be used in construction, machinery manufacturing, automobile manufacturing, shipbuilding and other fields. In the field of construction, channel steel is often used to make steel structure frames, support frames, beams and columns, etc. In the field of machinery manufacturing, channel steel is often used to make machine tool beds, tracks, conveyor belts, etc. In the field of automobile manufacturing, channel steel is often used to make frame, body and so on. In the field of shipbuilding, channel steel is often used to make hull frames, ship equipment, etc.

Attention to detail
The surface quality and allowable deviation of the geometric shape of the channel steel are specified in the standard. It is generally required that there should be no harmful defects in use on the surface, and no significant torsion. The allowable value of the wave bend (sickle bend) of the channel steel and the relevant parameters (h, b, d, t, etc.) of the cross-sectional shape of the channel steel of each specification are specified. value, tolerance value. The main manifestations of the incorrect geometric shape of the channel steel are: collapse angle, leg expansion and leg merging, etc.

Chinese channel steel specification

Model	Size(mm)						SD (cm2)	TW (Kg/m)
	h	b	tw	t	r	r1
5	50	37	4.5	7	7	3.5	6.92	5.44
6.3	63	40	4.8	7.5	7.5	3.8	8.45	6.63
8	80	43	5	8	8	4	10.24	8.04
10	100	48	5.3	8.5	8.5	4.2	12.74	10
12.6	126	53	5.5	9	9	4.5	15.69	12.31
14a	140	58	6	9.5	9.5	4.8	18.51	14.53
14b	140	60	8	9.5	9.5	4.8	21.31	16.73
16a	160	63	6.5	10	10	5	21.95	17.23
16b	160	65	8.5	10	10	5	25.15	19.75
18a	180	68	7	10.5	10.5	5.2	25.69	20.17
18b	180	70	9	10.5	10.5	5.2	29.29	22.99
20a	200	73	7	11	11	5.5	28.83	22.63
20b	200	73	7	11	11	5.5	32.83	25.77
22a	220	77	9	11.5	11.5	5.8	31.84	24.99
