Model NO.: | ZD-rebar | Standard: | ASTM |
---|---|---|---|
Material: | HRB335/HRB400/HRB500/Hrb600 | Custom Made: | Yes |
Custom Cycle: | 7-15 Days | Production Standards: | ASTM/JIS/AISI/DIN/BS/En/GB |
Payment Term: | 30%T/T Advance + 70% Balance | Alloy Or Not: | Low Alloy |
MOQ: | 3tons | Lengh: | Customized |
Advantage: | Wear Resistance, Machinability, Easy Welding | Specification2: | Zd-Hrr4 5 6 8 10 |
Specification3: | Zd-Hrr12 13 14 15 16 18 20 | Standard1: | ASTM A 6/a 6m-07 BS 4-1:1993 En 10024 JIS G 3192 |
Transport Package: | Export Standard Package/as Request | Specification: | According To Customer Requirements |
Trademark: | ZHENGDE | Origin: | China |
HS Code: | 7214200000 | Supply Ability: | 155000 Tons/Month |
Highlight: | iron steel rebar,hrb400 steel rebar,hrb400 steel reinforcement rebar |

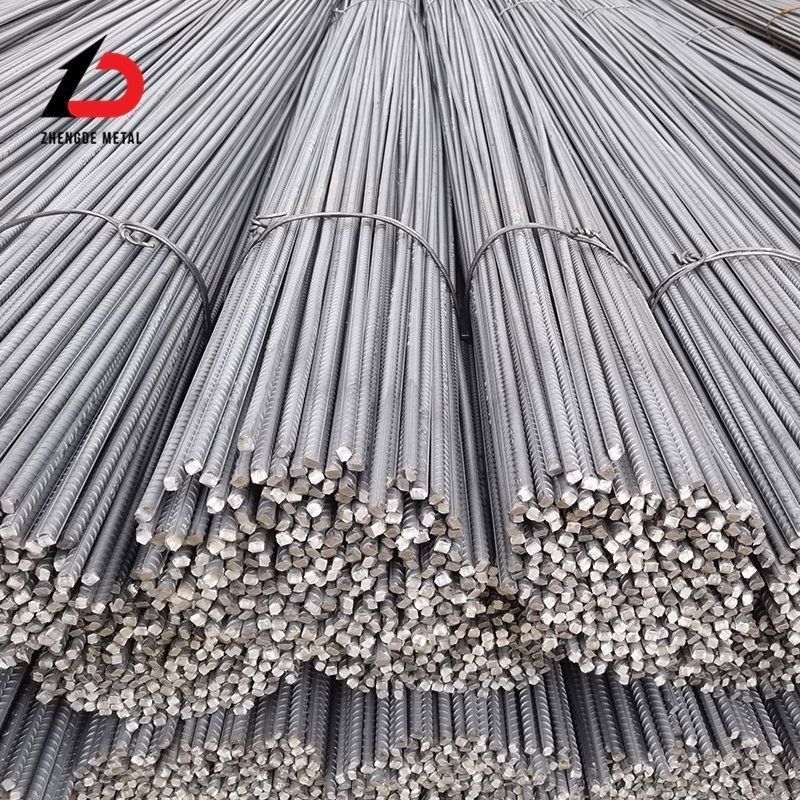

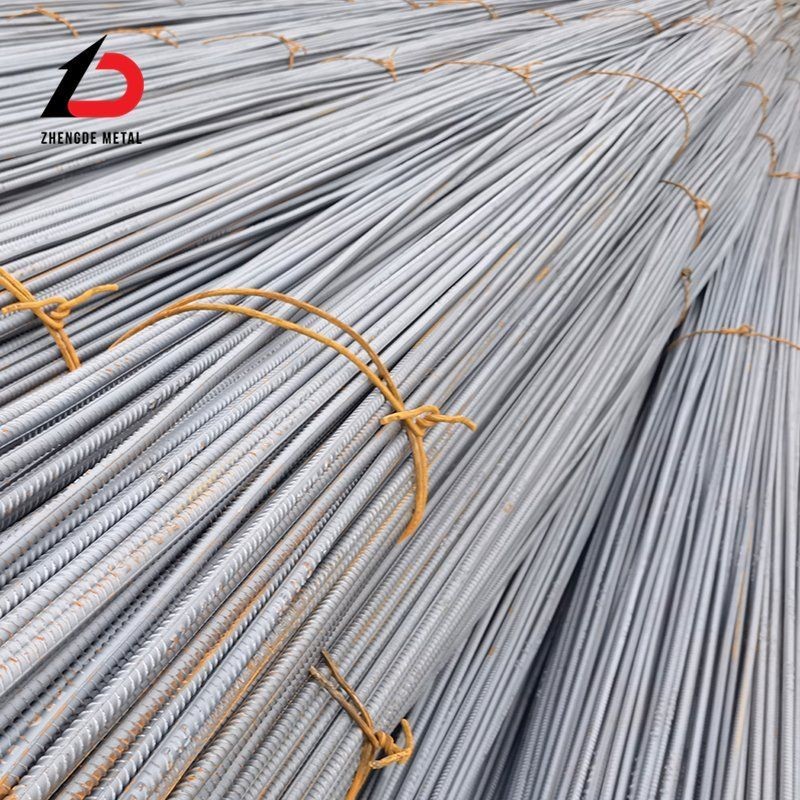

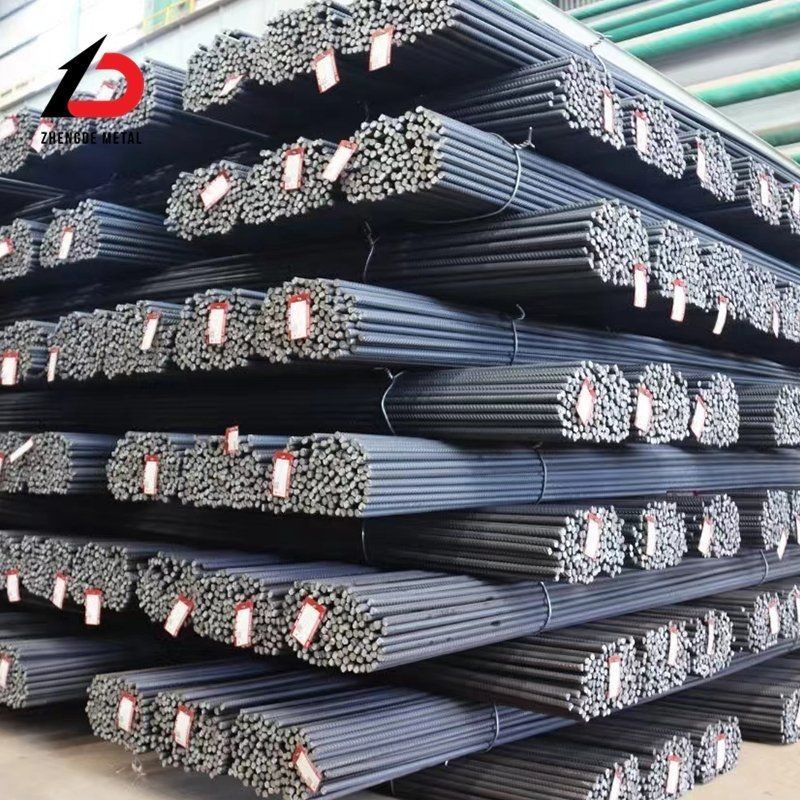

Light round steel bars are actually small round bars and discs of ordinary low carbon steel. Deformed bars are ribbed bars on the surface, usually with 2 longitudinal ribs and transverse ribs evenly distributed along the length. The shape of the transverse rib is spiral, herringbone and crescent.
d mm |
weight kg/m |
4.25d mm |
cm2 | Rebar type/d | |||||||||
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||||
10 | 0.616 | 43 | 0.785 | 1.570 | 2.355 | 3.140 | 3.925 | 4.710 | 5.495 | 6.280 | 7.065 | 7.850 | HRB335/10 |
12 | 0.888 | 51 | 1.131 | 2.262 | 3.393 | 4.524 | 5.655 | 6.786 | 7.917 | 9.048 | 10.179 | 11.310 | HRB335/12 |
14 | 1.208 | 60 | 1.539 | 3.078 | 4.617 | 6.156 | 7.695 | 9.234 | 10.773 | 12.312 | 13.851 | 15.390 | HRB335/14 |
16 | 1.578 | 68 | 2.011 | 4.022 | 6.033 | 8.044 | 10.055 | 12.066 | 14.077 | 16.088 | 18.099 | 20.110 | HRB335/16 |
18 | 1.998 | 77 | 2.545 | 5.090 | 7.635 | 10.180 | 12.725 | 15.270 | 17.815 | 20.360 | 22.905 | 25.450 | HRB335/18 |
20 | 2.466 | 85 | 3.142 | 6.284 | 9.426 | 12.568 | 15.710 | 18.852 | 21.994 | 25.136 | 28.278 | 31.420 | HRB335/20 |
22 | 2.984 | 94 | 3.801 | 7.602 | 11.403 | 15.204 | 19.005 | 22.806 | 26.607 | 30.408 | 34.209 | 38.010 | HRB335/22 |
25 | 3.853 | 106 | 4.909 | 9.818 | 14.727 | 19.636 | 24.545 | 29.454 | 34.363 | 39.272 | 44.181 | 49.090 | HRB335/25 |
28 | 4.834 | 119 | 6.158 | 12.316 | 18.474 | 24.632 | 30.790 | 36.948 | 43.106 | 49.264 | 55.422 | 61.580 | HRB335/28 |
32 | 6.313 | 136 | 8.042 | 16.084 | 24.126 | 32.168 | 40.210 | 48.252 | 56.294 | 64.336 | 72.378 | 80.420 | HRB335/32 |
36 | 7.990 | 153 | 10.179 | 20.358 | 30.537 | 40.716 | 50.895 | 61.074 | 71.253 | 81.432 | 91.611 | 101.790 | HRB335/36 |
40 | 9.865 | 170 | 12.566 | 25.132 | 37.698 | 50.264 | 62.830 | 75.396 | 87.962 | 100.528 | 113.094 | 125.660 | HRB335/40 |
45 | 12.485 | 191 | 15.904 | 31.808 | 47.712 | 63.616 | 79.520 | 95.424 | 111.328 | 127.232 | 143.136 | 159.040 | HRB335/45 |
50 | 15.413 | 213 | 19.635 | 39.270 | 58.905 | 78.540 | 98.175 | 117.810 | 137.445 | 157.080 | 176.715 | 196.350 | HRB335/50 |
55 | 18.652 | 234 | 23.758 | 47.516 | 71.274 | 95.032 | 118.790 | 142.548 | 166.306 | 190.064 | 213.822 | 237.580 | HRB335/55 |
60 | 22.192 | 255 | 28.274 | 56.548 | 84.822 | 113.096 | 141.370 | 169.644 | 197.918 | 226.192 | 254.466 | 282.740 | HRB335/60 |
70 | 30.206 | 298 | 38.485 | 76.970 | 115.455 | 153.940 | 192.425 | 230.910 | 269.395 | 307.880 | 346.365 | 384.850 | HRB335/70 |
80 | 39.462 | 340 | 50.265 | 100.530 | 150.795 | 201.060 | 251.325 | 301.590 | 351.855 | 402.120 | 452.385 | 502.650 | HRB335/80 |
90 | 49.942 | 383 | 63.617 | 127.234 | 190.851 | 254.468 | 318.085 | 381.702 | 445.319 | 508.936 | 572.553 | 636.170 | HRB335/90 |
Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
