Model NO.: | ZD-REBAR | Standard: | ASTM |
---|---|---|---|
Material: | HRB335/HRB400/HRB500/Hrb600 | Custom Made: | Yes |
Custom Cycle: | 7-15 Days | Production Standards: | ASTM/JIS/AISI/DIN/BS/En/GB |
Payment Term: | 30%T/T Advance + 70% Balance | Alloy Or Not: | Low Alloy |
MOQ: | 3tons | Lengh: | Customized |
Advantage: | Wear Resistance, Machinability, Easy Welding | Specification2: | Zd-Hrr4 5 6 8 10 |
Specification3: | Zd-Hrr12 13 14 15 16 18 20 | Standard1: | ASTM A 6/a 6m-07 BS 4-1:1993 En 10024 JIS G 3192 |
Transport Package: | Export Standard Package/as Request | Specification: | According To Customer Requirements |
Trademark: | ZHENGDE | Origin: | China |
HS Code: | 7214200000 | Supply Ability: | 155000 Tons/Month |
Highlight: | iron rebar,iron angle bar,construction rebar |

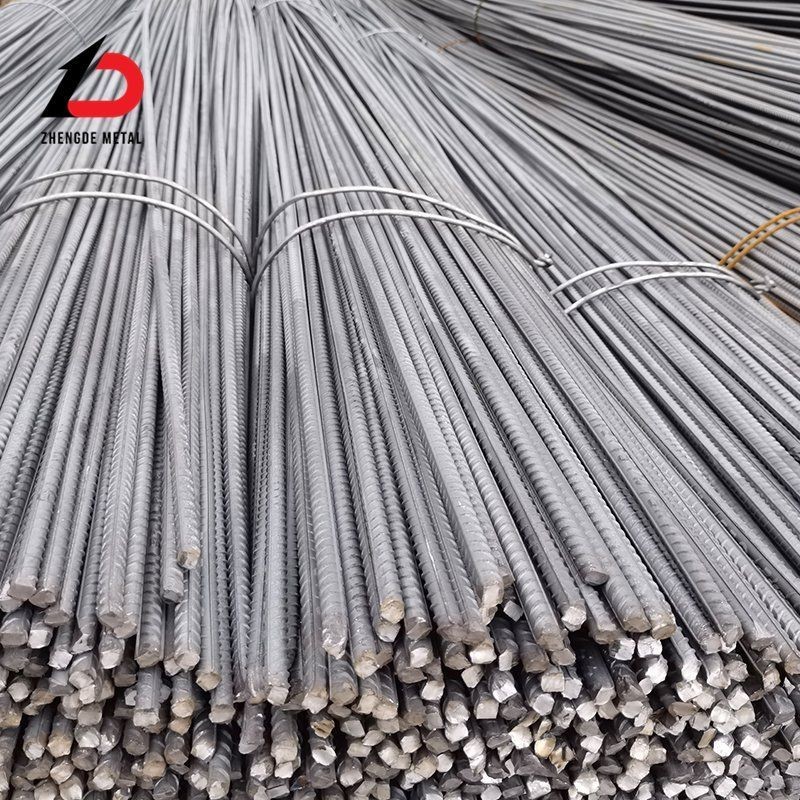

Waste heat treatment steel bar refers to the finished steel bar obtained by hot-rolling the steel and immediately passing through water to control the surface cooling, and then using the waste heat in the core to complete the tempering treatment. It is also a ribbed steel bar. At present, there are only crescent steel bars. And the cross-sectional shape is the same as the hot-rolled ribbed steel bar, and the grade of the ribbed steel bar after waste heat treatment is Class III
d mm |
weight kg/m |
4.25d mm |
cm2 | Rebar type/d | |||||||||
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||||
10 | 0.616 | 43 | 0.785 | 1.570 | 2.355 | 3.140 | 3.925 | 4.710 | 5.495 | 6.280 | 7.065 | 7.850 | HRB335/10 |
12 | 0.888 | 51 | 1.131 | 2.262 | 3.393 | 4.524 | 5.655 | 6.786 | 7.917 | 9.048 | 10.179 | 11.310 | HRB335/12 |
14 | 1.208 | 60 | 1.539 | 3.078 | 4.617 | 6.156 | 7.695 | 9.234 | 10.773 | 12.312 | 13.851 | 15.390 | HRB335/14 |
16 | 1.578 | 68 | 2.011 | 4.022 | 6.033 | 8.044 | 10.055 | 12.066 | 14.077 | 16.088 | 18.099 | 20.110 | HRB335/16 |
18 | 1.998 | 77 | 2.545 | 5.090 | 7.635 | 10.180 | 12.725 | 15.270 | 17.815 | 20.360 | 22.905 | 25.450 | HRB335/18 |
20 | 2.466 | 85 | 3.142 | 6.284 | 9.426 | 12.568 | 15.710 | 18.852 | 21.994 | 25.136 | 28.278 | 31.420 | HRB335/20 |
22 | 2.984 | 94 | 3.801 | 7.602 | 11.403 | 15.204 | 19.005 | 22.806 | 26.607 | 30.408 | 34.209 | 38.010 | HRB335/22 |
25 | 3.853 | 106 | 4.909 | 9.818 | 14.727 | 19.636 | 24.545 | 29.454 | 34.363 | 39.272 | 44.181 | 49.090 | HRB335/25 |
28 | 4.834 | 119 | 6.158 | 12.316 | 18.474 | 24.632 | 30.790 | 36.948 | 43.106 | 49.264 | 55.422 | 61.580 | HRB335/28 |
32 | 6.313 | 136 | 8.042 | 16.084 | 24.126 | 32.168 | 40.210 | 48.252 | 56.294 | 64.336 | 72.378 | 80.420 | HRB335/32 |
36 | 7.990 | 153 | 10.179 | 20.358 | 30.537 | 40.716 | 50.895 | 61.074 | 71.253 | 81.432 | 91.611 | 101.790 | HRB335/36 |
40 | 9.865 | 170 | 12.566 | 25.132 | 37.698 | 50.264 | 62.830 | 75.396 | 87.962 | 100.528 | 113.094 | 125.660 | HRB335/40 |
45 | 12.485 | 191 | 15.904 | 31.808 | 47.712 | 63.616 | 79.520 | 95.424 | 111.328 | 127.232 | 143.136 | 159.040 | HRB335/45 |
50 | 15.413 | 213 | 19.635 | 39.270 | 58.905 | 78.540 | 98.175 | 117.810 | 137.445 | 157.080 | 176.715 | 196.350 | HRB335/50 |
55 | 18.652 | 234 | 23.758 | 47.516 | 71.274 | 95.032 | 118.790 | 142.548 | 166.306 | 190.064 | 213.822 | 237.580 | HRB335/55 |
60 | 22.192 | 255 | 28.274 | 56.548 | 84.822 | 113.096 | 141.370 | 169.644 | 197.918 | 226.192 | 254.466 | 282.740 | HRB335/60 |
70 | 30.206 | 298 | 38.485 | 76.970 | 115.455 | 153.940 | 192.425 | 230.910 | 269.395 | 307.880 | 346.365 | 384.850 | HRB335/70 |
80 | 39.462 | 340 | 50.265 | 100.530 | 150.795 | 201.060 | 251.325 | 301.590 | 351.855 | 402.120 | 452.385 | 502.650 | HRB335/80 |
90 | 49.942 | 383 | 63.617 | 127.234 | 190.851 | 254.468 | 318.085 | 381.702 | 445.319 | 508.936 | 572.553 | 636.170 | HRB335/90 |
Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
