| Place of Origin: | China |
|---|---|
| Brand Name: | Zhengde Metal |
| Price: | negotiable |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Model NO.: | ZD-FB3 | Material: | ASTM A36 A572 A992 S235jr/J0/J2 S355jr/J0/J2 |
|---|---|---|---|
| Custom Made: | Yes | Custom Cycle: | 7-15 Days |
| Product Name: | Steel Flat Bar | Payment Term: | 30%T/T Advance + 70% Balance |
| Alloy Or Not: | Custom Made | MOQ: | 3tons |
| Lengh: | Custom Made | Advantage: | Wear Resistance, Machinability, Easy Welding |
| Specification2: | Hrsfbw20 30 50 60 70 75 80 90 | Specification3: | Hrsfbw100 120 140 160 180 200 |
| Standard1: | ASTM A 6/a 6m-07 BS 4-1:1993 En 10024 JIS G 3192 | Transport Package: | Export Standard Package/as Request |
| Specification: | According To Customer Requirements | Trademark: | ZHENGDE |
| Origin: | China | HS Code: | 7211140000 |
| Supply Ability: | 50000 Tons/Month | ||
| Highlight: | hot rolled flat steel bar,hot rolled steel flat bar,a36 flat steel bar |
||

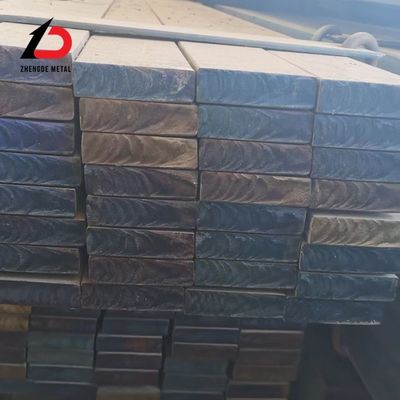

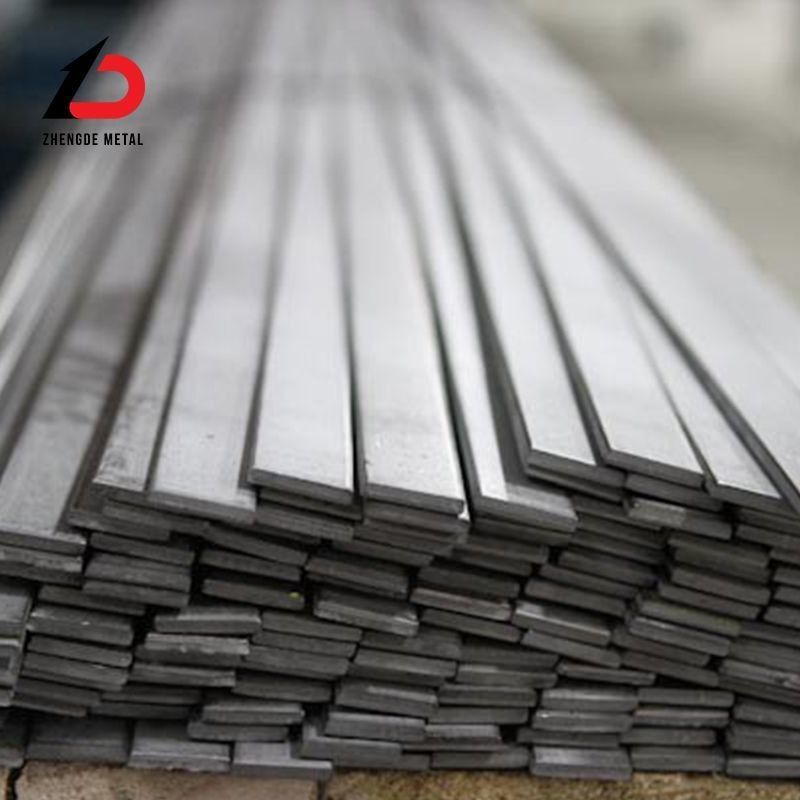

Rolled Steel Flat is widely used for all general fabrication and repairs in industrial maintenance, agricultural implements, transportation equipment, etc. HR A569 Steel Flat is stripped from coil and A36 is rolled as bars.ZhengDe Metal stocks hundreds of sizes of steel flat that you can buy online in ready to ship precut or mill lengths or you can order just what you need custom Cut to Size in small or large quantity at wholesale prices.
ZhengDe Metal carries a large selection of flat bar made from alloy, steel, aluminum, brass, tool steel, and more. It is broadly used for industrial tools, mechanical parts, structure construction, base plates, ornamental fence construction, and more. ZhengDe Metal has flat bar available in a range of standard sizes as well as customized cut-to-fit service.
Hot-rolled Steel Flat is used widely in general fabrication and repairs in general maintenance, agricultural implements and transportation equipment. It is easy to weld, cut, form, and machine and is frequently used in framework, braces, supports, plates and straps.
1018 Cold Finished Flat Bar
C1018 Cold Finish Flat is made from rolled steel. With its close dimensional accuracy and smooth surface finish, it is easy to weld, cut, form, and machine. It is commonly used in fixtures, mounting plates, and machine components.
6061 Aluminum Flat Bar
6061 Aluminum Flat Bar, with its light weight and corrosion resistance, is used for many different fabrication projects: framework, braces, supports, trim, gussets, mounting plates, and more. 6061 Aluminum Flat Bar is easy to weld, cut, and machine.
| W (mm) |
Thickness(mm) | ||||||||||||||||
| 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | |
| Weight (kg/m) | |||||||||||||||||
| 12 | 0.38 | 0.47 | 0.57 | 0.66 | 0.75 | ||||||||||||
| 14 | 0.44 | 0.55 | 0.66 | 0.77 | 0.88 | ||||||||||||
| 16 | 0.5 | 0.63 | 0.75 | 0.88 | 1 | 1.15 | 1.26 | ||||||||||
| 18 | 0.57 | 0.71 | 0.85 | 0.99 | 1.13 | 1.27 | 1.41 | ||||||||||
| 20 | 0.63 | 0.79 | 0.94 | 1.1 | 1.26 | 1.41 | 1.57 | 1.73 | 1.88 | ||||||||
| 22 | 0.69 | 0.86 | 1.04 | 1.21 | 1.38 | 1.55 | 1.73 | 1.9 | 2.07 | ||||||||
| 25 | 0.79 | 0.98 | 1.18 | 1.37 | 1.57 | 1.77 | 1.96 | 2.16 | 2.36 | 2.75 | 3.14 | ||||||
| 28 | 0.88 | 1.1 | 1.32 | 1.54 | 1.76 | 1.98 | 2.2 | 2.42 | 2.64 | 3.08 | 3.53 | ||||||
| 30 | 0.94 | 1.18 | 1.41 | 1.65 | 1.88 | 2.12 | 2.36 | 2.59 | 2.83 | 3.36 | 3.77 | 4.24 | 4.71 | ||||
| 32 | 1.01 | 1.25 | 1.5 | 1.76 | 2.01 | 2.26 | 2.54 | 2.76 | 3.01 | 3.51 | 4.02 | 4.52 | 5.02 | ||||
| 36 | 1.13 | 1.41 | 1.69 | 1.97 | 2.26 | 2.51 | 2.82 | 3.11 | 3.39 | 3.95 | 4.52 | 5.09 | 5.65 | ||||
| 40 | 1.26 | 1.57 | 1.88 | 2.2 | 2.51 | 2.83 | 3.14 | 3.45 | 3.77 | 4.4 | 5.02 | 5.65 | 6.28 | 6.91 | 7.85 | 8.79 | |
| 45 | 1.41 | 1.77 | 2.12 | 2.47 | 2.83 | 3.18 | 3.53 | 3.89 | 2.24 | 4.95 | 5.65 | 6.36 | 7.07 | 7.77 | 8.83 | 9.89 | 10.6 |
| 50 | 1.57 | 1.96 | 2.36 | 2.75 | 3.14 | 3.53 | 3.93 | 4.32 | 4.71 | 5.5 | 6.28 | 7.07 | 7.85 | 8.64 | 9.81 | 10.99 | 11.78 |
| 56 | 1.76 | 2.2 | 2.64 | 3.08 | 3.52 | 3.95 | 4.39 | 4.83 | 5.27 | 6.15 | 7.3 | 7.91 | 8.79 | 9.67 | 10.99 | 12.31 | 13.19 |
| 60 | 1.88 | 2.36 | 2.83 | 3.3 | 3.77 | 4.24 | 4.71 | 5.18 | 5.65 | 6.59 | 7.54 | 8.48 | 9.42 | 10.36 | 11.78 | 13.19 | 14.13 |
| 63 | 1.98 | 2.47 | 2.97 | 3.46 | 3.95 | 4.45 | 4.94 | 5.44 | 5.93 | 6.92 | 7.91 | 8.9 | 9.69 | 10.88 | 12.36 | 13.85 | 14.34 |
| 65 | 2.04 | 2.55 | 3.06 | 3.57 | 4.08 | 4.59 | 5.1 | 5.61 | 6.12 | 7.14 | 8.16 | 9.19 | 10.21 | 11.23 | 12.76 | 14.29 | 15.31 |
| 70 | 2.2 | 2.75 | 3.3 | 3.85 | 4.4 | 4.95 | 5.5 | 6.04 | 6.59 | 7.69 | 8.79 | 8.89 | 10.99 | 12.09 | 13.74 | 15.39 | 16.49 |
| 75 | 2.36 | 2.94 | 3.53 | 4.12 | 4.71 | 5.3 | 5.89 | 6.48 | 7.07 | 8.24 | 9.42 | 10.6 | 11.78 | 12.95 | 14.72 | 16.49 | 17.66 |
| 80 | 2.51 | 3.14 | 3.77 | 4.4 | 5.02 | 5.65 | 6.28 | 6.91 | 7.54 | 8.79 | 10.05 | 11.3 | 12.56 | 13.82 | 15.7 | 17.58 | 18.84 |
| 85 | 2.67 | 3.34 | 4 | 4.67 | 5.34 | 6.01 | 6.67 | 7.34 | 8.01 | 9.34 | 10.68 | 12.01 | 13.35 | 14.68 | 16.68 | 18.68 | 20.02 |
| 90 | 2.83 | 3.53 | 4.24 | 4.95 | 5.56 | 6.36 | 7.07 | 7.77 | 8.48 | 9.89 | 11.3 | 12.72 | 14.13 | 15.54 | 17.65 | 19.78 | 21.2 |
| 95 | 2.98 | 3.73 | 4.47 | 5.22 | 5.97 | 6.71 | 7.46 | 8.2 | 8.95 | 10.44 | 11.93 | 13.42 | 14.92 | 16.41 | 18.84 | 20.88 | 22.37 |
| 100 | 3.14 | 3.93 | 4.71 | 5.5 | 6.28 | 7.07 | 7.85 | 8.64 | 9.42 | 10.99 | 12.56 | 14.13 | 15.7 | 17.27 | 19.63 | 21.98 | 23.55 |
| 105 | 3.3 | 4.12 | 4.95 | 5.77 | 6.59 | 7.42 | 8.24 | 9.07 | 9.89 | 11.54 | 13.19 | 14.84 | 16.49 | 18.18 | 20.61 | 23.08 | 24.73 |
| 110 | 3.45 | 4.32 | 5.18 | 6.04 | 6.91 | 7.77 | 8.64 | 9.5 | 10.36 | 12.09 | 13.82 | 15.54 | 17.27 | 19 | 21.59 | 24.18 | 25.91 |
| 120 | 3.77 | 4.71 | 5.65 | 6.59 | 7.54 | 8.48 | 9.42 | 10.36 | 11.3 | 13.19 | 15.07 | 16.96 | 18.84 | 20.72 | 23.55 | 26.38 | 28.26 |
| 125 | 3.93 | 4.91 | 5.89 | 6.67 | 7.85 | 8.83 | 9.81 | 10.76 | 11.78 | 13.74 | 15.7 | 17.66 | 19.63 | 21.5 | 24.53 | 27.48 | 29.44 |
| 130 | 4.08 | 5.1 | 6.12 | 7.14 | 8.16 | 9.18 | 10.21 | 11.23 | 12.25 | 14.29 | 16.33 | 18.87 | 20.41 | 22.45 | 25.51 | 28.57 | 30.62 |
| 140 | 4.4 | 5.5 | 6.59 | 7.69 | 8.79 | 9.89 | 10.99 | 12.09 | 13.19 | 15.39 | 17.58 | 19.78 | 21.98 | 24.18 | 27.48 | 30.77 | 32.97 |
| 150 | 4.71 | 5.89 | 7.07 | 8.24 | 9.42 | 10.6 | 11.78 | 12.95 | 14.13 | 16.49 | 18.84 | 21.2 | 23.55 | 25.91 | 29.44 | 32.97 | 35.33 |
