Model NO.: | ZD-HRSSP | Technique: | Hot Rolled |
---|---|---|---|
Material: | Carbon Steel | Surface Treatment: | Black |
Usage: | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose | Section Shape: | Round |
Custom Made: | Yes | Custom Cycle: | 7-15 Days |
Production Standards: | ASTM/JIS/AISI/DIN/BS/En/GB | Payment Term: | 30%T/T Advance + 70% Balance |
Alloy Or Not: | Low Alloy | MOQ: | 3tons |
Lengh: | Customized | Advantage: | Wear Resistance, Machinability, Easy Welding |
Specification2: | Zd-Hrssp20e10/20/30/40/50/60/70 | Specification3: | Zd-Hrssp20e80/90/102/118/120 |
Standard1: | ASTM A 6/a 6m-07 BS 4-1:1993 En 10024 JIS G 3192 | Transport Package: | Export Standard Package/as Request |
Specification: | According To Customer Requirements | Trademark: | ZHENGDE |
Origin: | China | HS Code: | 7304192000 |
Supply Ability: | 65000 Tons/Month | ||
Highlight: | hot rolled seamless steel pipe,hot rolled seamless steel tube |

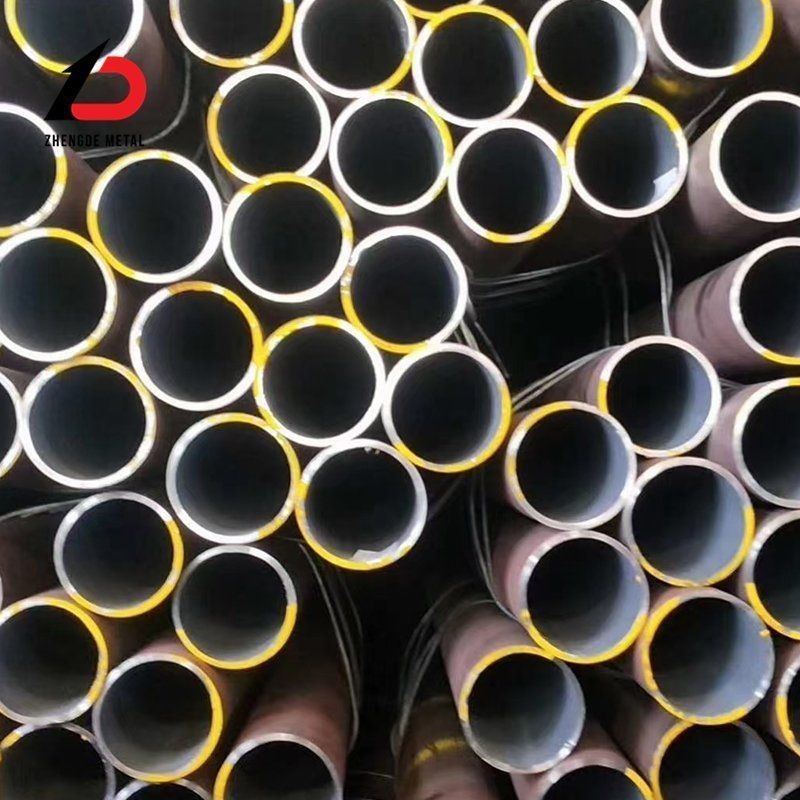

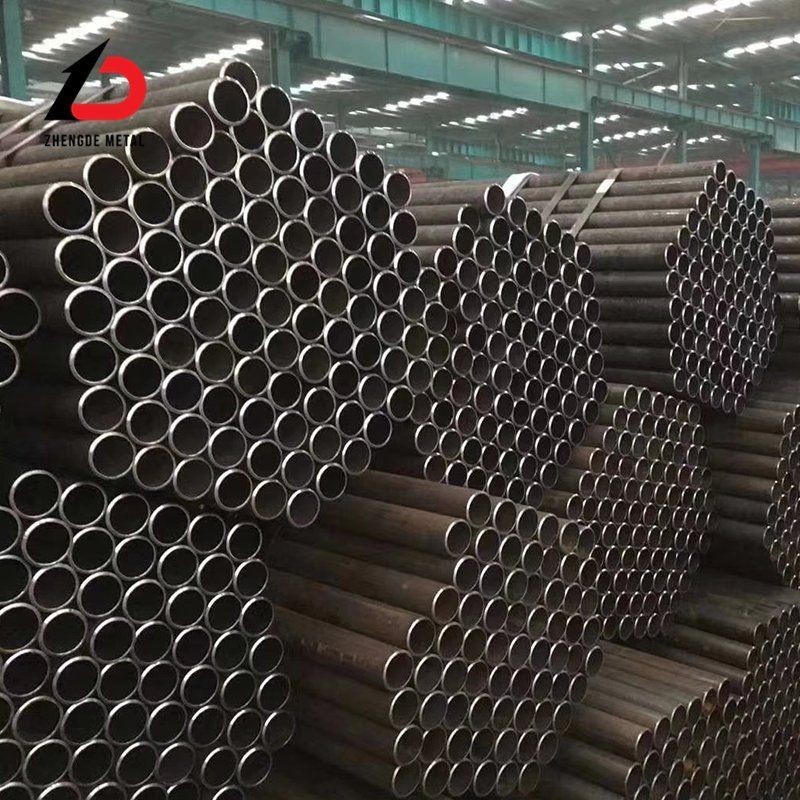

Seamless steel pipe with hollow section, a large number of used for conveying fluid pipeline, such as conveying oil, natural gas,gas, water and some solid material pipeline. Compared to the steel pipe and round steel solid steel.bending torsional strength phase at the same time, the weight is lighter, is a kind of economic cross section steel
thick Φ |
3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 8 | 8.5 | 9 | 10 | 12 |
32 | 2.146 | 2.46 | 2.762 | 3.052 | 3.329 | 3.594 | 3.847 | 4.088 | ||||||
38 | 2.589 | 2.978 | 3.354 | 3.718 | 4.069 | 4.408 | 4.735 | 5.049 | ||||||
42 | 2.885 | 3.323 | 3.749 | 4.162 | 4.562 | 4.951 | 5.327 | 5.691 | ||||||
45 | 3.107 | 3.582 | 4.044 | 4.495 | 4.932 | 5.358 | 5.771 | 6.172 | ||||||
50 | 3.477 | 4.014 | 4.538 | 5.049 | 5.549 | 6.036 | 6.511 | 6.973 | 7.423 | 8.286 | 8.699 | |||
54 | 3.773 | 4.359 | 4.932 | 5.493 | 6.042 | 6.578 | 7.103 | 7.614 | 8.114 | 9.075 | 9.538 | |||
57 | 3.995 | 4.618 | 5.228 | 5.826 | 6.412 | 6.985 | 7.546 | 8.095 | 8.632 | 9.667 | 10.167 | |||
60 | 4.217 | 4.877 | 5.524 | 6.159 | 6.782 | 7.392 | 7.99 | 8.576 | 9.149 | 10.259 | 10.796 | |||
63.5 | 4.476 | 5.179 | 5.869 | 6.548 | 7.214 | 7.867 | 8.508 | 9.137 | 9.754 | 10.95 | 11.529 | |||
68 | 4.809 | 5.567 | 6.313 | 7.047 | 7.768 | 8.477 | 9.174 | 9.858 | 10.53 | 11.838 | 12.473 | |||
70 | 4.957 | 5.74 | 6.511 | 7.269 | 8.015 | 8.749 | 9.47 | 10.179 | 10.876 | 12.232 | 12.892 | 13.539 | 14.797 | 17.164 |
73 | 5.179 | 5.999 | 6.807 | 7.602 | 8.385 | 9.156 | 9.914 | 10.66 | 11.394 | 12.824 | 13.521 | 14.205 | 15.537 | 18.052 |
76 | 5.401 | 6.258 | 7.103 | 7.935 | 8.755 | 9.563 | 10.358 | 11.141 | 11.912 | 13.416 | 14.15 | 14.871 | 16.277 | 18.94 |
89 | 6.363 | 7.38 | 8.385 | 9.378 | 10.358 | 11.326 | 12.281 | 13.225 | 14.156 | 15.981 | 16.875 | 17.756 | 19.483 | 22.787 |
108 | 7.768 | 9.02 | 10.259 | 11.486 | 12.701 | 13.903 | 15.093 | 16.27 | 17.436 | 19.729 | 20.858 | 21.973 | 24.168 | 28.41 |
133 | 11.178 | 12.725 | 14.261 | 15.783 | 17.294 | 18.792 | 20.278 | 21.751 | 24.662 | 26.098 | 27.522 | 30.334 | 35.809 | |
159 | 13.422 | 15.29 | 17.146 | 18.989 | 20.821 | 22.639 | 24.446 | 26.24 | 29.791 | 31.548 | 33.293 | 36.746 | 43.503 | |
219 | 18.601 | 21.209 | 23.805 | 26.388 | 28.959 | 31.517 | 34.064 | 36.598 | 41.629 | 44.126 | 46.61 | 51.543 | 61.259 | |
273 | 23.262 | 26.536 | 29.797 | 33.046 | 36.283 | 39.508 | 42.72 | 45.92 | 52.283 | 55.445 | 58.596 | 64.86 | 77.24 | |
325 | 27.75 | 31.665 | 35.568 | 39.458 | 43.337 | 47.202 | 51.056 | 54.897 | 62.542 | 66.346 | 70.137 | 77.684 | 92.629 | |
355 | 38.897 | 43.158 | 47.406 | 51.641 | 55.865 | 60.076 | 68.46 | 72.634 | 76.796 | 85.082 | 101.507 | |||
377 | 41.339 | 45.871 | 50.39 | 54.897 | 59.391 | 63.873 | 72.801 | 77.246 | 81.679 | 90.508 | 108.018 | |||
426 | 46.777 | 51.913 | 57.036 | 62.147 | 67.246 | 72.332 | 82.468 | 87.518 | 92.555 | 102.592 | 122.519 | |||
450 | 71.093 | 76.475 | 87.203 | 92.549 | 97.882 | 108.511 | 129.621 | |||||||
480 | 75.902 | 81.654 | 93.122 | 98.837 | 104.54 | 115.909 | 138.499 | |||||||
530 | 83.917 | 90.286 | 102.987 | 109.319 | 115.638 | 128.24 | 153.296 | |||||||
630 | 99.947 | 107.549 | 122.716 | 130.281 | 137.833 | 152.902 | 182.89 |
